High Definition P4 Mobile Truck LED Display , advertising outdoor mobile led screen
♦ Product Description
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
3. Nice appearance and simple structures.
♦ Our Service:
Pre-sales support
1. We offered technical advice to our customers before buying our products.
2. Help customers to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our customer’s specific usage.
After- sales service
1. We promise our customers5 years warranty service!
2. We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for our customer.
3. We promise a life time follow up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.
♦ Advantage :
1 . Wide viewing angle: Viview led display show clear pictures or image without mosaics even when audiences see it from a small viewing angle;
2 . Rich colors: With three basic colors (red, green and blue), 256-level gradation of each color, and form 167772 16 kinds of colors;
3 . Adjustable brightness: Viview LED screen brightness can be adjusted automatic and manual according to environment light;
4 . Good color blending: Display clear, exquisite, nature color video even at close distance;
5 . Wide range of display content: Viview led wall can easily to display txt documents, doc documents, pictures and video
6 . Led display usage range: Governmental plazas, Large-scale entertainment plazas, business and commercial centers, playground, station, airport and so on

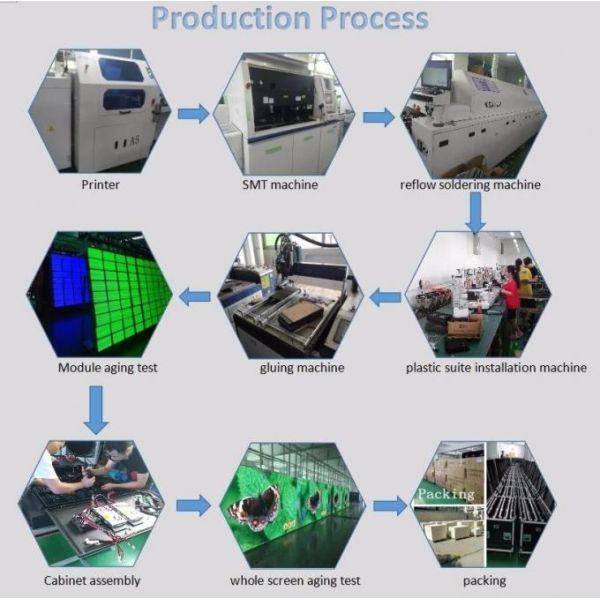

♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Product specification
| indoor SMD P4 |
| Lamp size | 1921 |
| Resolution/mm | |
| Pixel configuration | RGB 3 in 1 |
| Pixel density/pixels/m² | 62500/m² |
| Module resolution | 64x32 |
| Module size/mm | 256x128/320*160 |
| View distance | ≥5m |
| Single point brightness adjust | Can be added |
| Single point color adjust | Can be added |
| White balance brightness | >5000cd/㎡ |
| Color temperature | 6500K-9500K |
| Horizontal view angle | 120(degrees) |
| Vertical view angle | 60(degrees) |
| Signal Process bit | 10 or 14 bit |
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 |
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:5km |
| Driving mode | Constant driving current |
| Scanning mode | 1/8 |
| Frame rate | 60Hz |
| Refresh frequency | >1920Hz |
| Control mode | Computer synchronous |
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss |
| Out of control point | <1/10000 |
| Working hours | ≥72hours |
| Mean Time Between Failure | >5000hours |
| Life time | 100000hours |
| Life-all-white(brightness halving) | 50000hours |
| Environment temperature range | Operating temperature range: -20-45℃ Storing temperature range: -30-65℃ |
| Maximum power:/㎡ | <1000W |
| Average power:/㎡ | <320W |
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) |
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) |
| Software environment | WindowsNT,Windows1999,WindowsXP |
| Luminous point width between centres | Deviation<3% |
| Brightness uniformity | <10% |
| Color uniformity(chromaticity coordinate) | ±0.003 |
| Power supply request | AC85-264V(50Hz-60Hz) |
| Contrast | (1000:1) |
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration |
| Humidity(working) | working:10-95% |
| Humidity(storing) | storing:10-95% |
♦ Introduction
Shenzhen X-Media electronic company was establieshed in 2008. With more than 12years experience in led display industry, our clients cover more than 50 countries. We have built good reputation at home and abroad. Welcome for your visiting our factory.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
Our team will be forever here to offer you full supports !!!
